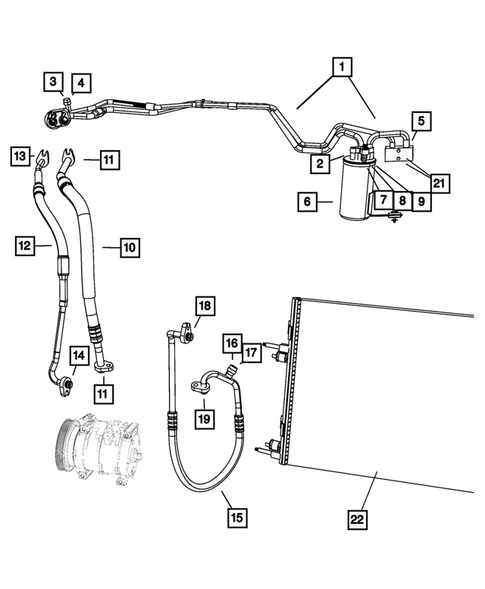

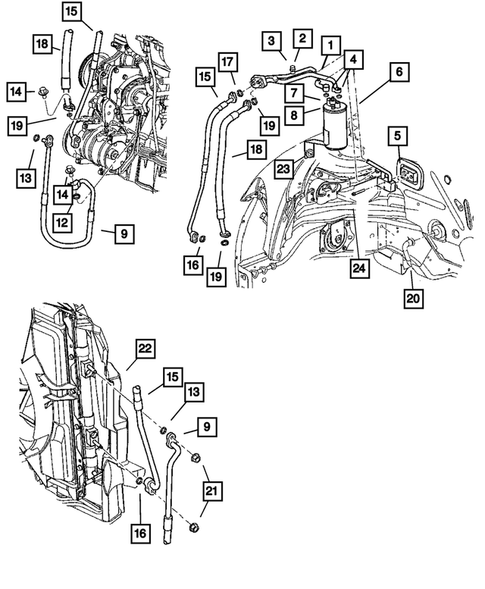

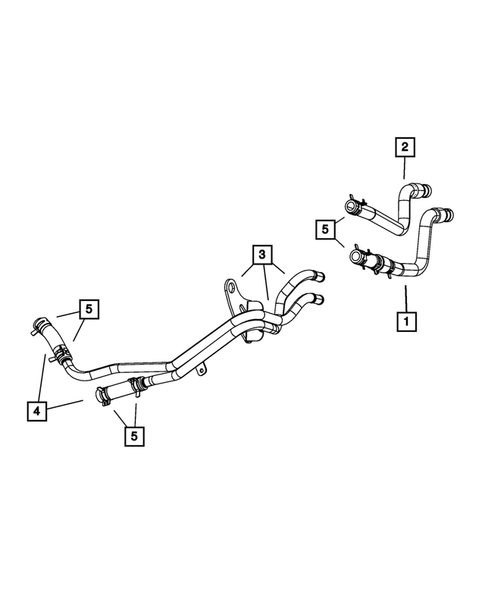

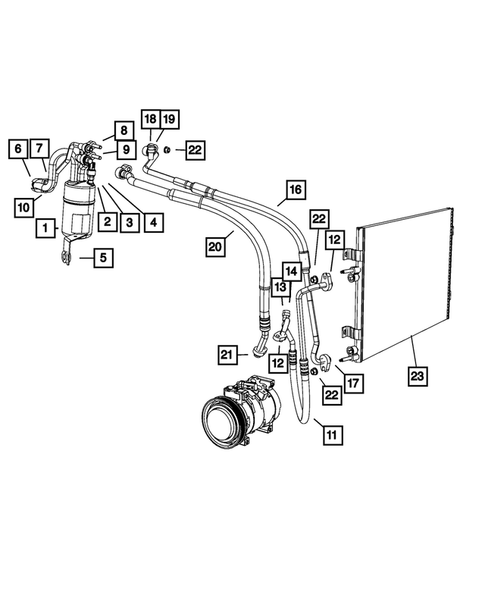

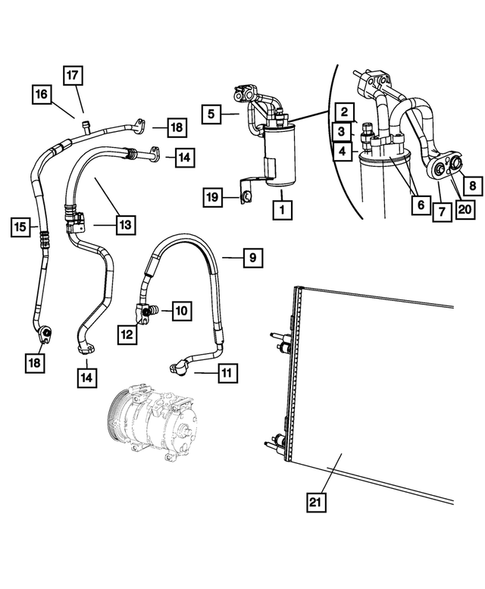

Air Conditioner and Heater Plumbing for 2009 Chrysler PT Cruiser
No.
Part # / Description / Price
Price
N/A
MSRP $4.40
$4.05
1
A/c Suction And Liquid Line
Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE.
Description: After 12-01-2003, Up to 12-12-2003 with Accumulator
2
A/c Line Valve Core Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: After 12-01-03, After 12-12-03
MSRP $31.95
$29.39
MSRP $31.95
$29.39
3
A/c Low Pressure Cut Off Switch Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
4
A/c Line O Ring Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: Switch. After 12-01-03, After 12-12-03
6
A/c Line Seal Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: Slim Line. After 12-01-2003. 5/8 inch, After 12-01-03, After 12-12-03
7
A/c Line Seal Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: Slim Line. After 12-01-2003. 1/2 inch, After 12-01-03, After 12-12-03
8
A/c Line O Ring Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE.
Description: Drier End, After 12-01-2003, after 12-18-2003
9
A/c Line O Ring Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE.
Description: Accumulator End - After 12-01-2003
11
12
A/c Line O Ring Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: After 12-01-2003, after 12-18-2003
14
A/c Charge Valve Cap Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
18
A/c Charge Valve Cap Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: After 12-01-2003, after 12-18-2003
19
A/c Line Valve Core Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: After 12-01-2003, after 12-18-2003
21
A/c Line O Ring Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 5-SPEED HD MANUAL G288 TRANSMISSION.
Description: Accumulator End - Up to 12-01-2003
22
Hex Nut-coned Washer Nut And Washer Mopar
Mopar Description: M8 x 1.25. Liquid Line/Filter Drier to Shock Tower Mounting
MSRP $11.30
$10.40
MSRP $11.30
$10.40
23
Air Conditioning Condenser Kit Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
No.
Part # / Description / Price
Price
1
Air Conditioning Accumulator Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: After 12/01/2003
2
A/c Low Pressure Cut Off Switch Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
3
A/c Line Valve Core Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: After 12-01-03, After 12-12-03
MSRP $31.95
$29.39
MSRP $31.95
$29.39
4
A/c Line O Ring Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: Switch. After 12-01-03, After 12-12-03
5
A/c Suction And Liquid Line Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V TURBO ENGINE.
Description: Without service port
6
A/c Line O Ring, Suction Line To Compressor Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: Valve. To Accumulator. Switch. Up to 12-01-03. 5/8 Inch Red In Color.
7
A/c Line Seal Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: Slim Line. After 12-01-2003. 1/2 inch, After 12-01-03, After 12-12-03
8
A/c Line Seal Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: Slim Line. After 12-01-2003. 5/8 inch, After 12-01-03, After 12-12-03
10
A/c Charge Valve Cap Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
11
A/c Line O Ring Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: After 12-01-2003, after 12-18-2003
12
A/c Line O Ring Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: 1/2
13
A/c Suction Line, Automatic Transaxle Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V HO TURBO ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 5-SPEED HD MANUAL G288 TRANSMISSION.
Description: Automatic Transmission.
13
A/c Suction Line Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V HO TURBO ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 5-SPEED HD MANUAL G288 TRANSMISSION.
14
A/c Line O Ring Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 5-SPEED HD MANUAL G288 TRANSMISSION.
Description: Accumulator End - Up to 12-01-2003
16
A/c Charge Valve Cap Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: After 12-01-2003, after 12-18-2003
17
A/c Line Valve Core Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: After 12-01-2003, after 12-18-2003
21
Air Conditioning Condenser Kit Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V TURBO ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 5-SPEED HD MANUAL G288 TRANSMISSION.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
No.
Part # / Description / Price
Price
N/A
Hex Nut-coned Washer Nut And Washer Mopar
Mopar Description: M8 x 1.25. Liquid Line/Filter Drier to Shock Tower Mounting
MSRP $11.30
$10.40
MSRP $11.30
$10.40
7
A/c Low Pressure Cut Off Switch Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
8
A/c Line Valve Core Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: After 12-01-03, After 12-12-03
MSRP $31.95
$29.39
MSRP $31.95
$29.39
13
A/c Line O Ring Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: After 12-01-2003, after 12-18-2003
14
15
A/c Charge Valve Cap Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
20
Air Conditioning Condenser Kit Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
No.
Part # / Description / Price
Price
1
Supply Hose Clamp, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: 26 mm Diameter. [Open DIameter = M26.0 THK=1.30]. Oil Cooler To Water Inlet
MSRP $8.60
$7.91
MSRP $8.60
$7.91
2
Clamp Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V TURBO ENGINE.
Description: Filling Hose to Radiator
MSRP $7.45
$6.85
MSRP $7.45
$6.85
4
Heater Hose Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V TURBO ENGINE.
Description: Tube to Pump (Serviced in Item #4)
No.
Part # / Description / Price
Price
7
A/c Low Pressure Cut Off Switch Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
14
MSRP $4.40
$4.05
21
Hex Nut-coned Washer Nut And Washer Mopar
Mopar Description: M8 x 1.25. Liquid Line/Filter Drier to Shock Tower Mounting
MSRP $11.30
$10.40
MSRP $11.30
$10.40
No.
Part # / Description / Price
Price
N/A
Hex Nut-coned Washer Nut And Washer Mopar
Mopar Description: M8 x 1.25. Liquid Line/Filter Drier to Shock Tower Mounting
MSRP $11.30
$10.40
MSRP $11.30
$10.40
7
A/c Low Pressure Cut Off Switch Mopar
Mopar Notes: Engines: 2.2L 4 CYL TURBO DIESEL ENGINE. 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
No.
Part # / Description / Price
Price
1
Heater Core To Tube Hose Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE.
Description: HEATER CORE TO TUBE
MSRP $71.35
$62.43
MSRP $71.35
$62.43
2
Heater Hose And Tube Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE.
Description: contains 2 Hoses, Clamps and Tube
3
4
Supply Hose Clamp, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: 26 mm Diameter. [Open DIameter = M26.0 THK=1.30]. Oil Cooler To Water Inlet
MSRP $8.60
$7.91
MSRP $8.60
$7.91
No.
Part # / Description / Price
Price
3
Heater Hose And Tube Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE.
Description: contains 2 Hoses, Clamps and Tube
4
5
Supply Hose Clamp, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V TURBO ENGINE.
Description: 26 mm Diameter. [Open DIameter = M26.0 THK=1.30]. Oil Cooler To Water Inlet
MSRP $8.60
$7.91
MSRP $8.60
$7.91
